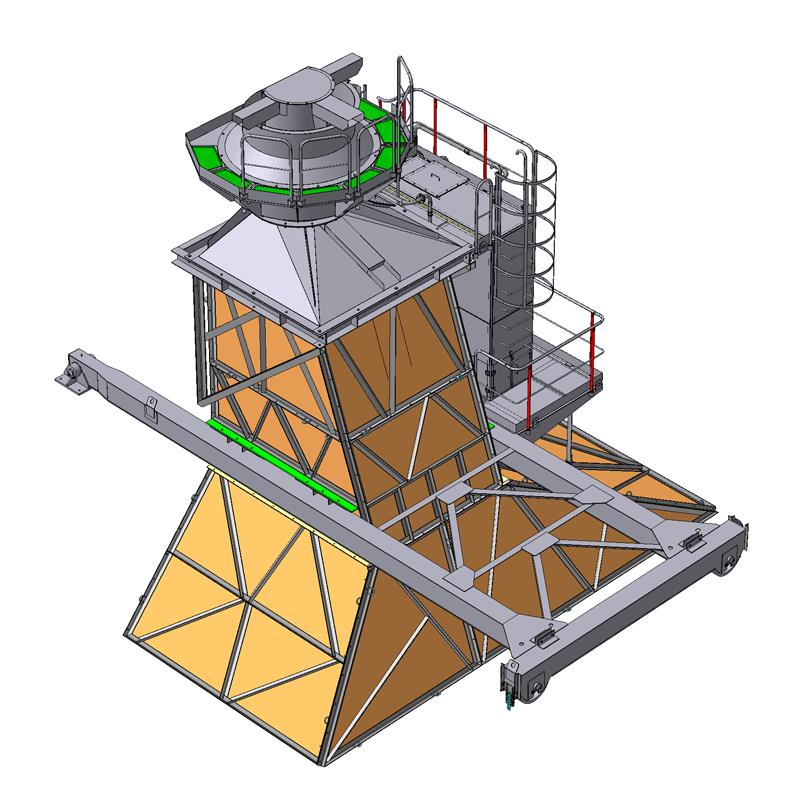

Coke side dedusting unit ОФ-542.04
Purpose
Coke side dedusting unit is a part of coke guide for dust reduction during transfer to coke quenching car.
Description
1.Fan drive
1.1.Electrical motor 4АМУ225М8, 30 kW, 750 rpm
1.2.Fan capacity, m/hour 36000
3.Pump 1К65-50-160а with electrical drive АИР100S2, 4 kW
4.Tank volume, m 4,5
5.Electrical heater, тип ТЭН 140 В13/3,15
6.thermometer, type ТКП-100ЭК (0-120)
7.level indicator, float type
