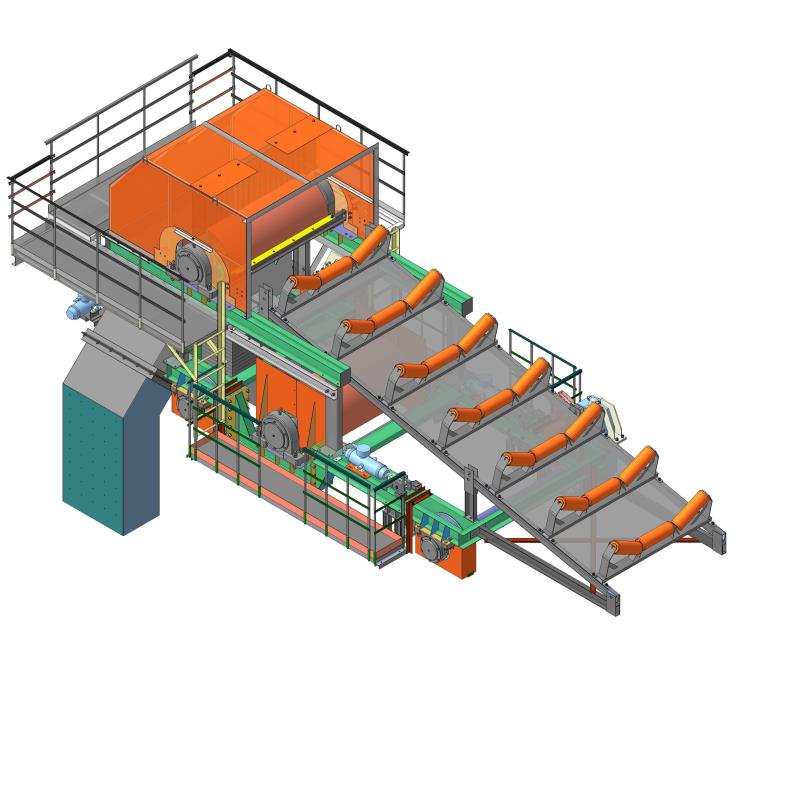

Discharge cars
Purpose
Discharge car is used to transport or discharge material from anywhere alongside the conveyor (transfer zone).
Description
Main technical data:
1. Belt width, mm 800, 1000, 1200, 1400
2. Speed, m/s 0,3
3. Pulley dia., mm 530, 640, 830, 1030
4. Gauge width, mm depending on belt width
5. Drive: Gear motor
Quantity, pcs 2, 4
Power, kW 3 to 6
6. Rail catch drive МЭП-С1-2/65-200-ЦШ-НВ-А-ОГ-
On request, control device of discharge cars can provide several options: one-side or both sides discharge (simultaneous or alternate) of the conveyor.
The company offers individual approach to every client to choose both domestic or imported electrical parts, rollers, conveyor beltss and other purchased parts.
